Llpd line lightning protection device ic20z 4w | Streamer

(0 Review)

Description

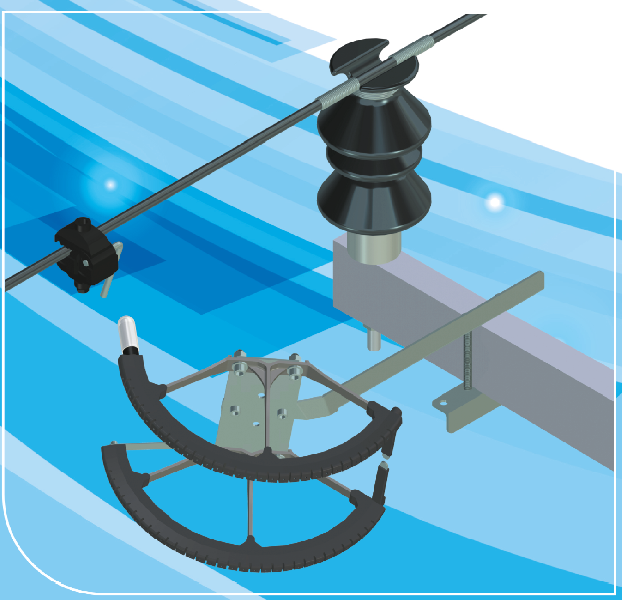

LLPD Line Lightning Protection Device iC20z 4W - induced overvoltage, compact, direct connection 6 to 24kV lines - 2x Half ring shape - High follow current

Code

SAI.C20.Z.4W/920

Description
SAiC20z.4W is intended for protection of overhead lines with nominal voltage up to 24 kV and high short-circuit currents against induced overvoltages and their deleterious consequences.

The main field of applications implies protection of conductors and insulators along distribution overhead power lines with and without shielding wire.

Name : LLPD Line Lightning Protection Device iC20z 4W

Brand : Streamer

Streamer

INNOVATION AND SOLUTION ORIENTED
Streamer is a specialist for innovative solutions which improve the reliability of medium and high voltage electrical networks. Streamer invests more than 10% of its turnover every year in three different R&D centers:
• St. Petersburg, Russia - in cooperation with the State Polytechnical University of St. Petersburg;
• Moscow, Russia - for the development of electronic products;
• Chur, Switzerland - in cooperation with University of Applied Sciences Rapperswil


PRODUCT RANGE
Lightning protection from 6 to 123kV A unique lightning protection solution for overhead line: Line Lightning Protection Devices (LLPDs) with EasyQuench (EQ) technology that has been invented and patented by Streamer. More than 1 million of LLPDs have been installed worldwide (Russia, China, Indonesia, Malaysia, Thailand, Brazil, UAE, Iran, Vietnam, Switzerland, Germany etc.).
Transformer drying solution
TRANSEC is an online drying solution for oil insulated transformer of all sizes. It can be installed, operated and regenerated while the Transformer is running and operational. It pumps the transformer oil continuously through its cylinders and thereby extract the moisture smoothly from the paper. Due to the robust design and it`s operation principle, TRANSEC is the most cost-efficient drying solution for Transformer!
